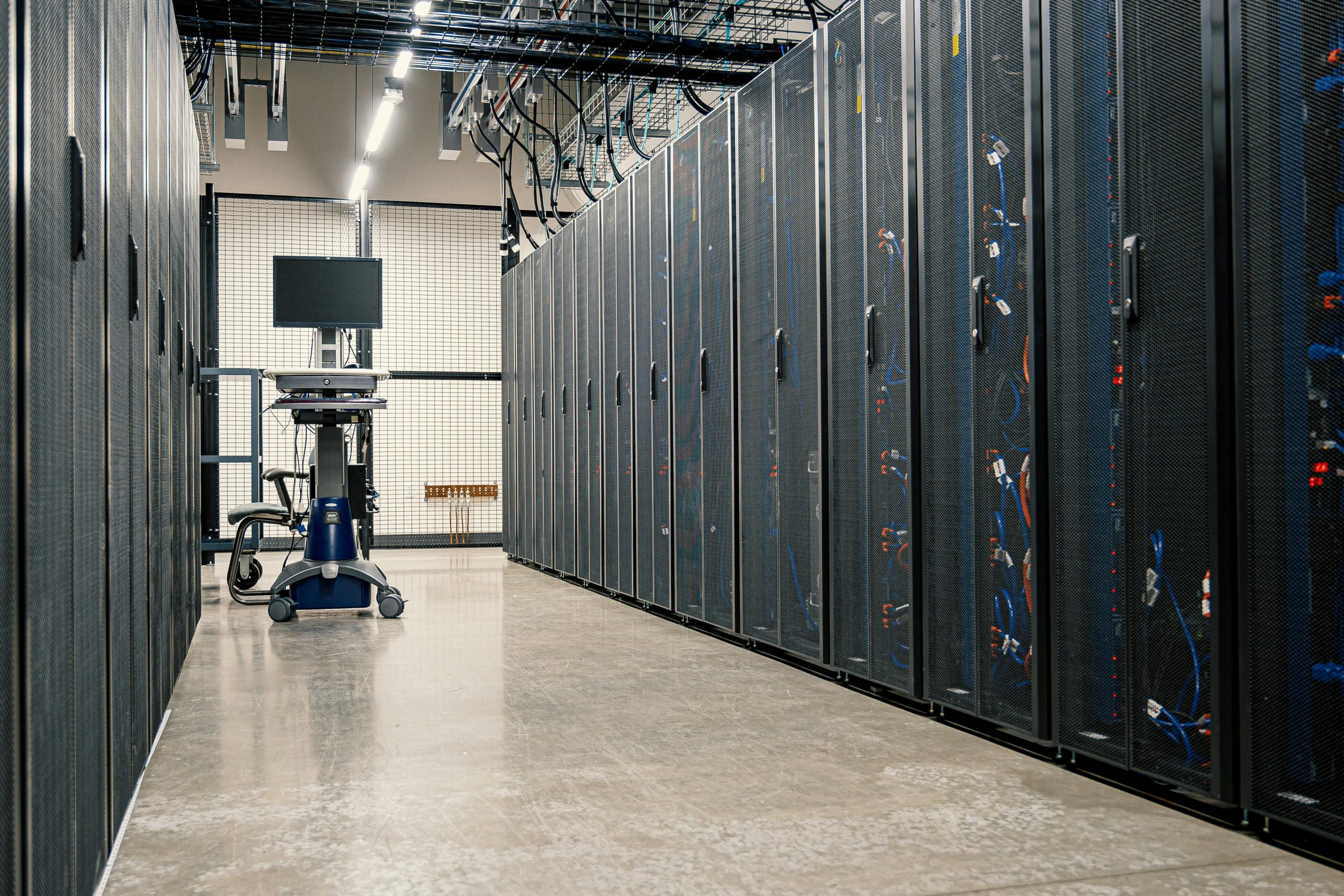

Hyperscale data centers, the engines behind AI, cloud computing, and global logistics, are growing at an explosive rate. A single campus can consume over 100 megawatts, enough to power a small city. Powering this growth presents an immense engineering challenge. How do you design a backup power system that is not only 100% reliable but also flexible enough to scale with demand?

The answer is not a single, giant generator. In our experience, the most resilient and economically viable solution for these massive facilities is a modular system of multiple generators operating in unison. The technology that makes this possible is paralleling switchgear.

This article will move beyond the basics of backup power and dive into the sophisticated control systems that enable data centers to achieve true scalability and redundancy. We’ll explore what paralleling switchgear is, how it works, and why it is the non-negotiable backbone of modern data center power infrastructure.

What is Paralleling? A Team Approach to Power

At its core, paralleling is the process of synchronizing multiple generators so that they behave as a single, unified power source.

Think of it like a team of rowers in a racing shell. For the boat to move with maximum power and stability, every rower must be in perfect sync, matching the stroke, timing, and power of everyone else. If one rower is out of sync, it creates drag and instability.

In an electrical system, our “rowers” are the generators. For them to work together, their AC power outputs must match perfectly across three parameters:

1. Voltage: The electrical “pressure” must be identical.
2. Frequency: The sine waves must cycle at the same rate (typically 60 Hz in North America).
3. Phase Angle: The peaks and troughs of each generator’s sine wave must align precisely.

Achieving this synchronization manually would be impossible in a mission-critical environment. This is the job of the paralleling switchgear.

The Anatomy of Paralleling Switchgear

Paralleling switchgear is a combination of heavy-duty hardware and sophisticated digital controls. It is the master controller that manages the entire generator plant.

Key components include:

• The Common Bus: A set of large copper bars where the power output from all individual generators is combined before being sent to the facility’s load.
• Generator Circuit Breakers: Each generator is connected to the common bus through its own large, automated circuit breaker. The switchgear controls when these breakers open and close.
• Master Controller (PLC): This is the brain. It’s a powerful computer that constantly monitors both the utility grid and every generator in the system. It makes intelligent decisions to start/stop generators, synchronize them, and manage the load.

Its primary functions are what make it indispensable for data centers:

1. Synchronization: When a generator starts, the controller precisely adjusts its speed and voltage. Once it’s a perfect match with the bus, it closes the breaker, adding the generator to the system without any disturbance.
2. Load Sharing: The controller ensures that the total electrical load is shared proportionally among all running generators. If the total load is 6,000kW and three generators are online, the controller ensures each one takes on a 2,000kW share. This prevents any single engine from being overloaded and optimizes fuel efficiency.
3. Load Add/Shed: The system is smart. If the data center’s load increases to a pre-set threshold (e.g., 80% of current capacity), the controller will automatically start, synchronize, and add another generator to the bus to increase capacity. Conversely, if the load drops, it can shut down unneeded generators to save fuel.

Generator Source In Action, A Real-World Hyperscale Scenario

The true value of this technology is best illustrated with a common challenge we help our clients solve.

The Project: A colocation client was building a new 10MW data hall, with plans to expand to 20MW within three years. They needed a Tier III compliant backup power system.

The Initial Idea: The client initially considered two very large 5,000kW generators to meet their Day 1 need.

Our Expert Recommendation: A 2N system with two massive generators is not only extremely expensive upfront but also inefficient to run at lower loads. Furthermore, it doesn’t provide the “N+1” redundancy that is more flexible for scaling.

We designed a more resilient and scalable N+1 solution built on paralleling technology:

• Phase 1 (10MW): We installed six 2,000kW generators. This provides 12MW of total capacity. For their 10MW load, five generators are required (N=5), leaving one as the “+1” for redundancy and maintenance.
• The Switchgear: The paralleling switchgear we installed was specified to handle the full future build-out of 20MW+.
• Phase 2 (20MW): As the client’s load grew, we simply added five more 2,000kW generators to the existing bus. The master controller recognized the new units and seamlessly integrated them into the system.

The Result: The client achieved Tier III concurrent maintainability from day one with a much lower initial capital expense. They were able to scale their power infrastructure in lockstep with their revenue growth, and our paralleling design has maintained 100% uptime through multiple utility events.

For hyperscale data centers, paralleling switchgear is not a luxury, it is the core technology that enables the required levels of reliability, scalability, and efficiency. It transforms a simple group of generators into a smart, resilient, and unified power plant.

Designing these complex systems requires deep expertise in both power generation and data center operational needs. If you are planning to upgrade or build out your mission-critical power infrastructure, our engineers are ready to help you design a paralleling solution that provides the flexibility for tomorrow’s growth and the reliability for today’s demands.
